RM Laptop has
hundreds New CCFL in stock.
We also carry numerous screens, keyboards, cd's, dvd's, floppy drives, and hard drives. We
can usually replace defective parts with high quality new, or remanufactured replacements!
We have access to a database of over 1600 laptop and computer dealers, to search out hard
to find parts by the LCD part numbers.
If you would like us to try to
find any used, or new laptop parts, you must furnish us with the actual manufacturers part
number. You may need to call the laptop's manufacturer for this information. Finding
laptop displays is even more difficult. Many laptops have the same model number, but may
use 3 or 4 different screens. We need to know the actual part number to search for a
replacement. Email US
If you do not wish to
remove the laptop's display to locate the part numbers on the back, we recommend shipping
us the laptop. The normal charge for removing a laptop display and searching for a
replacement is $50.00. We are also able to repair many screens, that are defective, but
not cracked. Soldering make sure no spike points protrude from the end caps See picture
below solder joints should be small but smooth and uniformly round.
The white 2 pin {normally pink and white wires} backlight interface
connector is a part BHSR-02VS-1
LCD Backlight Repair
We Repair All brands of LCM LCD Screen
Display flat panel faults. Need a New LCD
backlight replacement CCFL here
Industrial LCD repair.
Atm LCD repair.
Factory machinery LCdrepair.
LCD monitor repairs.
POS LCD service.
LCD TV repairs.
We can replace your LCD cold cathode florescent lamp (backlight)
for you, some times the glass tube becomes so hot the ends, become brittle and
crack/shatter inside the LCD normally lower edge area of laptop panels. We can normally repair and fix all problems including:
1
Those with LCD's failures (red screen) Example:-
Dell 8100 backlight repair if red or faulty will cause the
inverter to go into self protect mode switching itself off like a TV set will. 2 Intermittent and completely dead component failures, Could be the Flex
data cable 3 Liquid spillage = blured screen with whitish blured blotches. 4 Dim or Faint LCD,s (backlight out) or red or orange display tint, will need backlight replacement, will
refit LCD panel with NEW backlight in your LCD (extremely delicate operation) we found
lamps (CCFL) cracked form heat or shattered form shock or Hiss from open circuit solder
joints. 5 Transistor open & short circuits, Burnt out Inverter HV
transformers. or unraveled flex data connector or cables. SEE 6 Blank screen = Bad Lamp: CCFL (red
tint screen or pink)
= cathodes brown = Lamp burnt.
7 Faulty display = dry solder joints or static damage to I.C. 8 No Light= Bad inverter NpN or PnP MOSFET drivers or faulty
oscillator or Burnt out secondary winding. hissing noise inside LCD = bad connection do
not run will burn LCD plastics, inverter secondary winding will also hiss if open circuit
gap and will eventually ruin transformer or electronics on PCB.
Yes we can replace surface mount components. 9 Missing individual lines on a display
driver = pressure applied to edges of LCD
normally better to replace. bleeding LCD

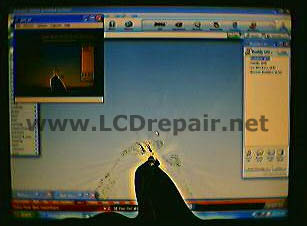

not repairable and Lines on LCD display 10 Blank display. Missing a block of lines, or a bar. 11 Dim or dark display or black LCD and tinted LCD red color. 12 Damage to the front of the display or Dim LCD Display. 13 Scratched surface of LCD we can
re-polarize (replace the plastic coating over the glass square Thin Film Transistors
[TFT]) with a new one. 14Liquid spilled on LCD and leaked
inside it we bring back to like new working condition. Coke or sugar and coffee spilled
into the LCD we can clean and reassemble your smudged LCD stained lcd repair. 15 Those with LCD's failures (white LCD
screen) normally bad electronics inside the LCD PCB driver we repair for $85
(white LCD screen) check to see if your system board is still sending 3.3 volts to the
LCD, if no Volts, I can repair your system board by adding a few transistors and a zenor
diode
3.3 volt regulator supply for lcd white with 0
Data 16 LCD brightness flashing on and off
normally a bad ballast cap on the inverter PCB.
See why a CCFL can fail 17 When turning the laptop on, the display
lights for a moment then goes dark. Looking close I can still barely make out a
desktop. If I press the little "latch switch" that the screen frame hits when it
closes then let that pin go again, the screen will light and then go out again. Just like
on boot. When it lights, the brightness and color look good.
Answer its the CCFL inside the panel that is worn out the inverter is turning
itself off to protect its electronics on the PCB since the load/impedance from the lamp is
wrong for it to function, just like your TV set when it is clicking the switch/mode power
supply is noticing a problem and going into self protect mode. Your laptop really needs to
be inspected to find out what parts are needing replacing before you spend money on the
inverter PCB. If your LCD is dark dim faint or red tint or orange tint effect goto this address for help.
Flashes red then goes black or flickering red hue on display then goes out = backlight week or burnt form continued use.
goto www.lrusa.com for address link and Detailed
instructions letter to fill out before repairs can start.

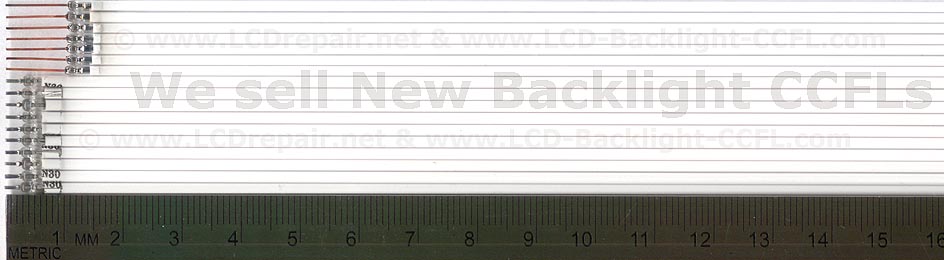

This is what a new Backlight looks like before we install it into a faulty
LCD display panel
Before sending your LCD in for repair, check
your Laptop is worth repairing, by connecting an external monitor and hitting Fn +
internal external display key, (normally one of the F keys, remember to hold down Fn and
the F key at the same time) this process will check the video, is sending an analog signal
out to the external monitor which lets you know the system board is ok. Also check
presence of FAINT digital data on blank displays. Example: when backlight is out or faint
digital data is showing. If not present you may have a bad digital signal cable or digital
video chip on the system board or maybe the LCD itself is just bad. Yes we can replace bad
LCD Driver LVDS ICs located inside the LCD electronics.
