LCD electronic repairs has
hundreds New CCFLbacklights
in stock. Click here to purchase
a single CCFL Sale: All LCD Monitors 19” and up + Free shipping!
We can usually replace defective parts with high quality new, or remanufactured
replacements! We have access to a database of over 1600 LCD and computer dealers, to
search out hard to find parts by the LCD part number.
or new
LCD,s
Also Laptop LCD refit
If you would like us to try to find any used, or new LCD parts, you must furnish us with
the actual manufacturers part number. You may need to call the laptop's manufacturer for
this information. Finding LCD displays is even more difficult. Many laptops have the same
model number, but may use 3 or 4 different screens. We need to know
the actual part number to search for a
replacement. Email
or see our LCD cross Reference for help
Flat rate monitor Inverter repair at $66 2x transformers.
If you do not wish to remove the LCD's display
to locate the part numbers on the back, we recommend shipping us the laptop. The normal
charge for removing a laptop display and searching for a replacement is $50.00. We are
also able to repair many screens, that are defective, but not cracked. Soldering make sure
no spike points protrude from the end caps See picture below, solder joints should be
small but smooth and uniformly round.

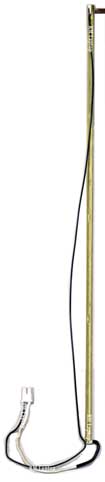

The white 2 pin {normally pink and white wires} backlight interface connector is a part
BHSR-02VS-1
LCD Backlight
Repair
We Repair All
brands of LCM LCD Screen Display flat panel faults.

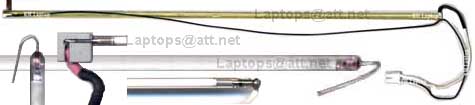

We can replace your LCD cold cathode florescent lamp
(backlight) for you about
CCFL,s, some times the glass tube becomes so hot the ends, become brittle and
crack/shatter inside the LCD normally lower edge area of laptop panels. We can normally repair and fix all problems including:
1 Those with LCD's failures (white screen or red screen)
Example:- Dell 8100 backlight repair if red will cause the inverter to go into self
protect-switching itself off, to repair replace the backlight with a new CCFL. Click Here For LCD backlight repair 2 Intermittent and completely dead component failures, Could be the flex data cable 3 Liquid spillage
= blurred screen with whitish blurred blotches. 4 Dim or Faint LCD,s (backlight out) or Red
or orange display tint, will
need backlight replacement, will refit LCD panel with NEW backlight in your LCD (extremely
delicate operation) we found lamps (CCFL) cracked form heat and Thermal Stress or
shattered form shock. or Hissing from open circuit solder joints. 5 Transistor open & short circuits, burnt out inverter HV
transformers or

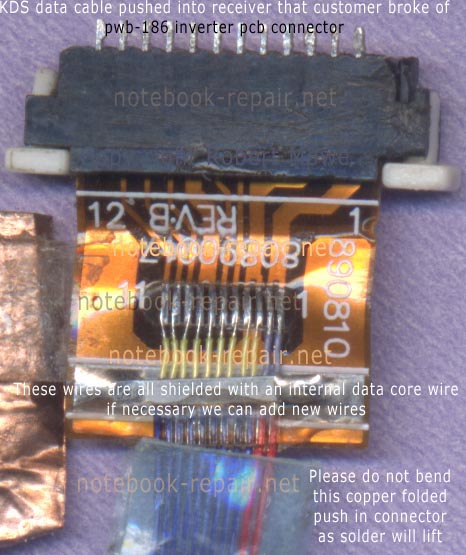

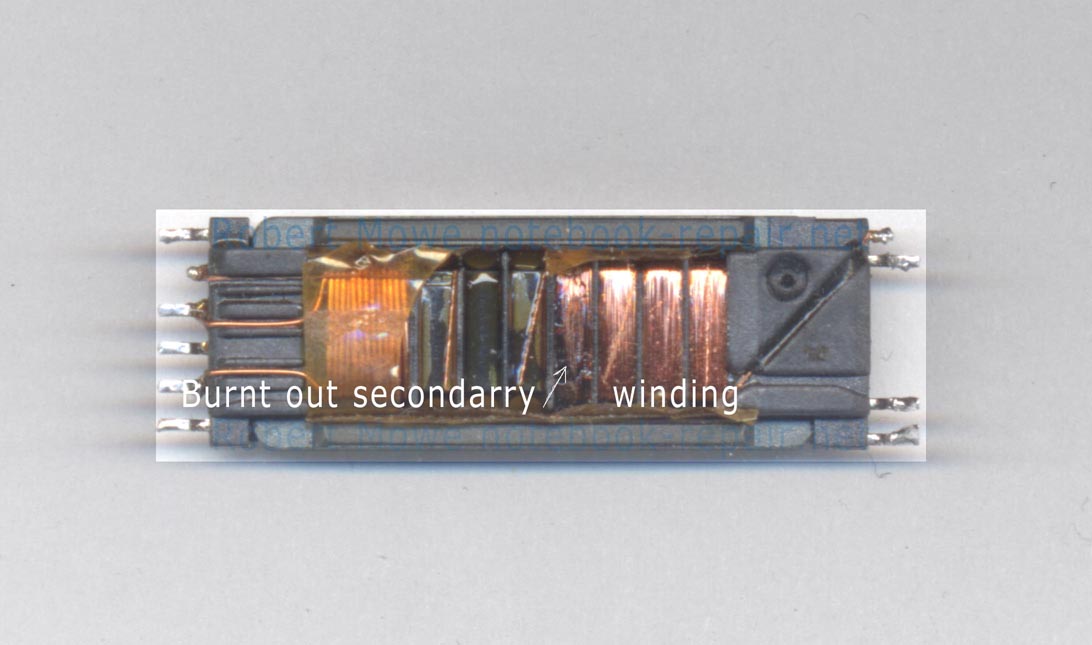

unraveled flex data connector or cables. SEE Transformer burning occurs when enameled copper winding gives
way to heat or high voltage leak. Yes it will work well if a new transformer is fitted on
the original inverter PCB
6 Blank screen =
Bad bulb CCFL (red screen) = cathodes brown = Lamp burnt.
Thermal stress can make the ends of glass lamps brittle. 7 Faulty display = dry solder joints or static damage to I.C. 8 No Light= Bad inverter N MOSFET or faulty oscillator or Burnt
out secondary winding.
Yes we can replace surface mount components. 9 Missing individual lines on a display driver = pressure applied
to edges of LCD normally better to replace
A.C.Film is lose 10 Blank display.
Missing a block of lines, or a bar. Normally
better to replace bad flex circuit on substrate 11 Dim or dark
display or black LCD and tinted LCD red color. 12 Damage to the front of the display or Dim LCD Display. 13 Scratched surface of LCD
We can re-polarize (replace the plastic coating over the glass square Thin Film
Transistors [TFT]) with a new one. 14 Drink spilled onto LCD we can also bring
back to like new working condition. More tips here
Before sending your Laptop LCD in for repair
check your Laptop is worth repairing, by connecting an external monitor and hitting Fn +
internal external display key, (normally one of the F keys) this process will check the
video is sending an analog signal out to the external monitor which lets you know the
system board is OK. Also check on blank displays. Example: when backlight is out, that you
see faint digital data is showing. If not present you may have a bad digital signal cable
or digital video chip on the system board or maybe the LCD itself is just bad. Yes we can
replace bad LCD Driver LVDS ICs located inside the LCD electronics. We repair Hitachi LCD panels found in most Sony Vaio laptops. When
showing a red hue we can replace the Backlight for you TX41D56___
backlight repair, call us for help since these LCD screens are expensive if damaged when
removing the Lamp. or simply mail only the LCD panel to the address below for repair or click on this link to fill out a work request.
Mail in LCD repairs
These
prices are inclusive for the New lamp fitted and tested, No added labor charged !
We now offer lines repair tab bonding at a very reasonable price. This
provides a great complement to our LCD re-polarizing service from $60 to $98 per LCD
depending on volume and screen) which is the best, fastest and least costly in the nation.
Electronics LCD monitor experts offers service and repair to all types
of monitors and LCDs. Our technical team is committed to customer satisfaction, and will
assist you with everything from locating Hard to find parts, to routine inspection,
eminence, and service. Our commitment to reliable and prompt service and repair, plus our
up to date expertise make The monitor experts a smart choice for your monitor and LCD
repair needs.
ElectronicsLCD monitor
experts specializes in the component level repair of all makes and models of “out of
warranty” monitors and laptops, as well as Industrial monitors, LCD flat panel displays, and plasma. We also
repair broadcasting NTSC monitors. Our state of the art test and repair facility has all
the equipment necessary to troubleshoot, repair and adjust to ensure maximum reliability.
Our experience of 15 continuous years servicing locally and nationwide come together to
offer you the highest degree of service Although we are located in Southern California we
happily ship and receive throughout the nation. We even include a 180 days warranty on our
repairs.
Electronics LCD monitor
experts has structured flat rate prices so
you know what to expect. There are no hourly rates, no hidden costs, no-bench fees.In the
consumer electronic repair industry there is a saying that if the repair costs less than
forty percent of thereplacement value, then get it repaired. After our experience and the
market study, we have determined that our rates fall well within this range.
It is generally better to repair than to replace
for a number of reasons. Typical CRT monitors life is 10,000 to 20,000 hours and
LCD’s 20,000 to 30,000 hours. All it takes is a tiny component to render a monitor
useless. Until the tube, Fly-back high-voltage transformer or voltage inverter fails it would be wise getting the unit repaired. Repairing
would make your company ecologically friendly by reducing the amount of computer waste in
our landfills. All monitors and laptops contain potentially dangerous heavy metals.
Lastly, repairing will save you money over buying a new monitor. be green and save with
LCDrepair.net
Our
company has extensive experience in working with big and small businesses such as computer
dealers, local and national computer service providers. local and national computer
service providers, corporations, government, banks, hospitals, schools, universities, and
other institutions.
To find out how we can help you, In any part of the
world, please contact us at: USA 877 6948288 or Email US, we will gladly reply to your
inquiry.
We repair most brands of LCD monitors & LCD models

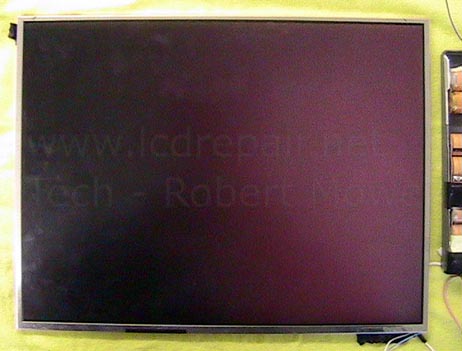

If your LCD powers up with a red tint or a orange tint or a pink hue, then you will need a new Backlight fitted into the LCD panel and tested with the right electronic equipment if it powers up flashes or flickers then goes off and blank replacing the inverter with a new one will not change the fact that the lamp is not the correct load anymore for the inverter PCB thus just because your LCD powers on then goes blank or flickers then goes off in our experience is a bad Backlight or sometimes less often is a bad inverter transformers secondary winding. The inverter is built in with a small controller IC sensing the lamps impedance feedback volts and load any wrong effect will simply place the inverter powering your Backlight into self protect mode or simply put will turn itself off. Remember to place new end caps on the glass
ends of the new CCFL or you may get hissing or interference on the Thin film transistors that sit in each squarepixel on the surface of
the glass LCD panel.
